HDMI SERIES
HDMI A TYPE
-
HDMI正向沉板銅殼鍍鎳窗口斜口兩K腳兩直腳，殼面模印，中心高度0.83 外殼總長12.05 端子間距1.5 半金霧錫1u
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
-
HDMI夾板式，外殼鍍鎳
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
-
HDMI加長款B款不銹鋼殼鍍鎳 四直腳四反彈片 翻邊高9.35 針長1.4 半金霧錫15u
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
-
查看全部產品
HDMI D TYPE
-
MICRO HDMI DTYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-
MICRO HDMI D TYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-
MICRO HDMI D SMT TYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-
查看全部產品

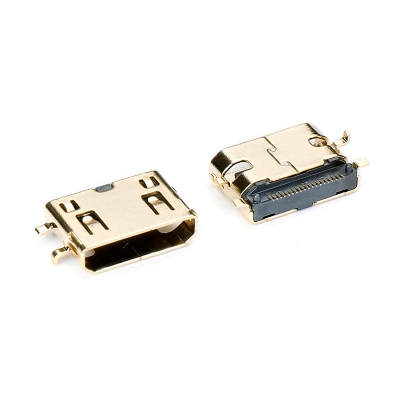

MINI HDMI
-
MINI HDMI
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-

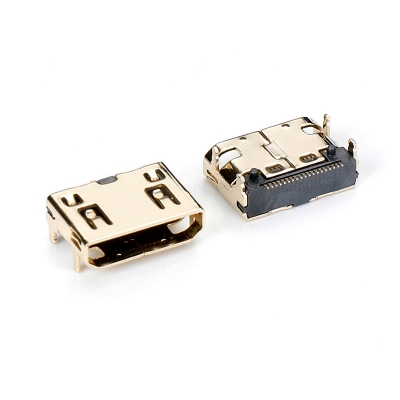

MINI HDMI TYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-
MINI HDMI SMT TYPE
Electrical
Voltage: 40 Volts AC (Per Pin)
Current: 0.3 Amperes (Per Pin)
Contact Resistance: 10 mΩ max. initial
30 mΩ max. after test
Dielectric Withstanding Voltage: 150 V AC/rms (mated conn.)
Insulation Resistance: 10 MΩ min. (mated conn.)
Operating Temp. : -40℃ ~ +85℃
-
查看全部產品

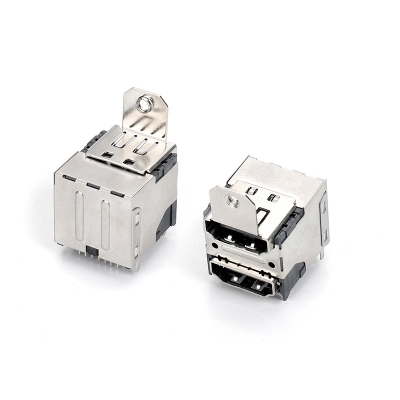

雙層HDMI
-
雙層HDMI DIP三排 帶定位柱,LCP黑膠半金GF 外殼不銹鋼,有耳7.2mm無柱
ElectricalVoltage: 40V AC (Per Pin)Current: 0.5A (Per Pin)Contact Resistance: 30 mΩ MAX.30 mΩ MAX. after testDielectric Withstanding Voltage: 500V AC/rms (mated conn.)Insulation Resistance: 100 MΩ min. (mated conn.)Operating Temp.: -30℃ ~ +85℃ -

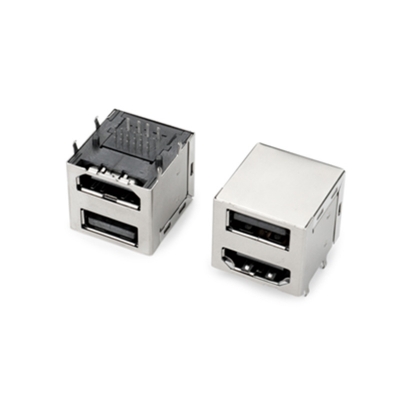

USB2.0AF+HDMI雙層90度 插板式
Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃
-
