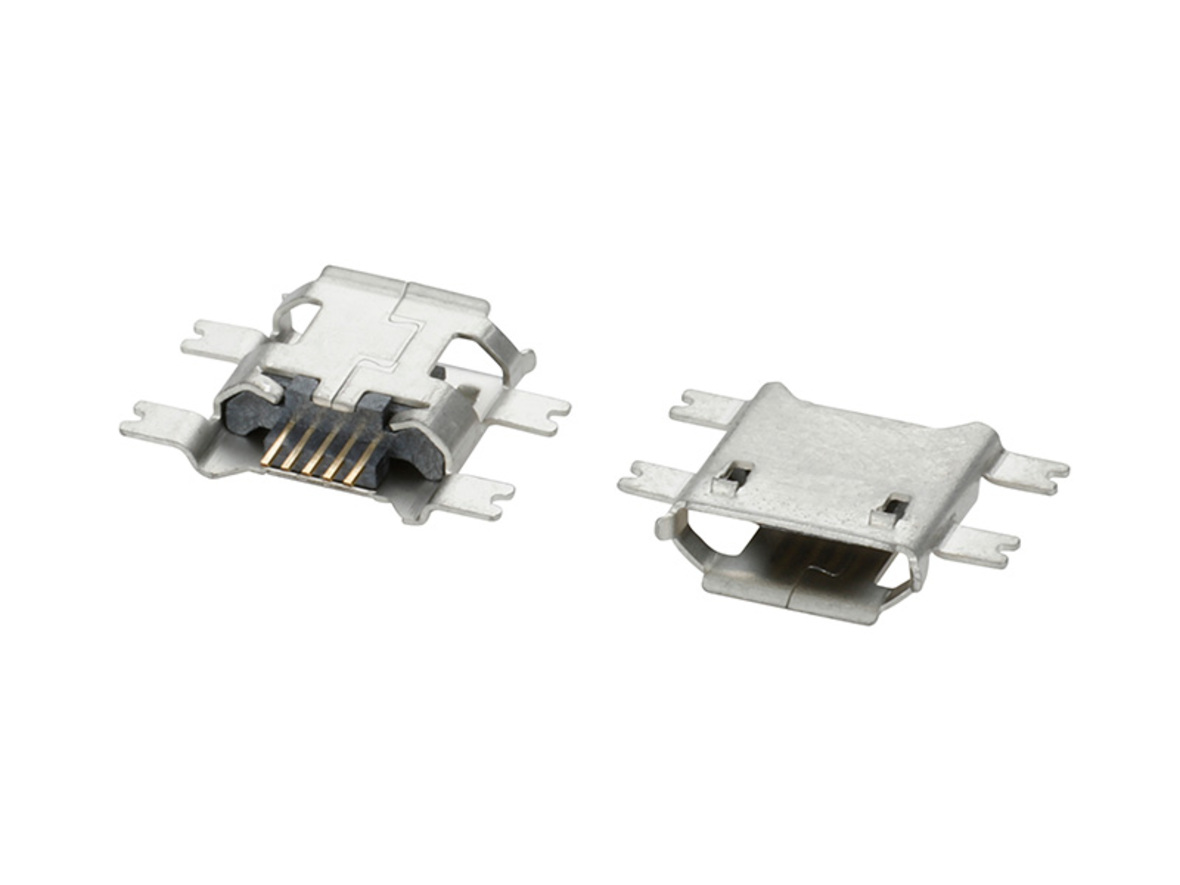

MICRO-5P-MICRO-5P 沉板1,17四腳貼片卷邊
電氣參數
Electrical
Rating: 30V AC
Current: PIN2&PIN3&PIN4& 1A, PIN5 1.8A
Withstanding Voltage: 100V AC
Contact Resistance: 30mΩ. MAX.
Insulation Resistance: 1000 MΩ. MIN.
Operating temperature: -20°C ~ +85°C;
Rating: 30V AC
Current: PIN2&PIN3&PIN4& 1A, PIN5 1.8A
Withstanding Voltage: 100V AC
Contact Resistance: 30mΩ. MAX.
Insulation Resistance: 1000 MΩ. MIN.
Operating temperature: -20°C ~ +85°C;
產品規格
Specification(Abbreviation)
Family: Micro B
Interface: Single
PCB Mounting: SMT
Operation Direction: R/A
Family: Micro B
Interface: Single
PCB Mounting: SMT
Operation Direction: R/A
