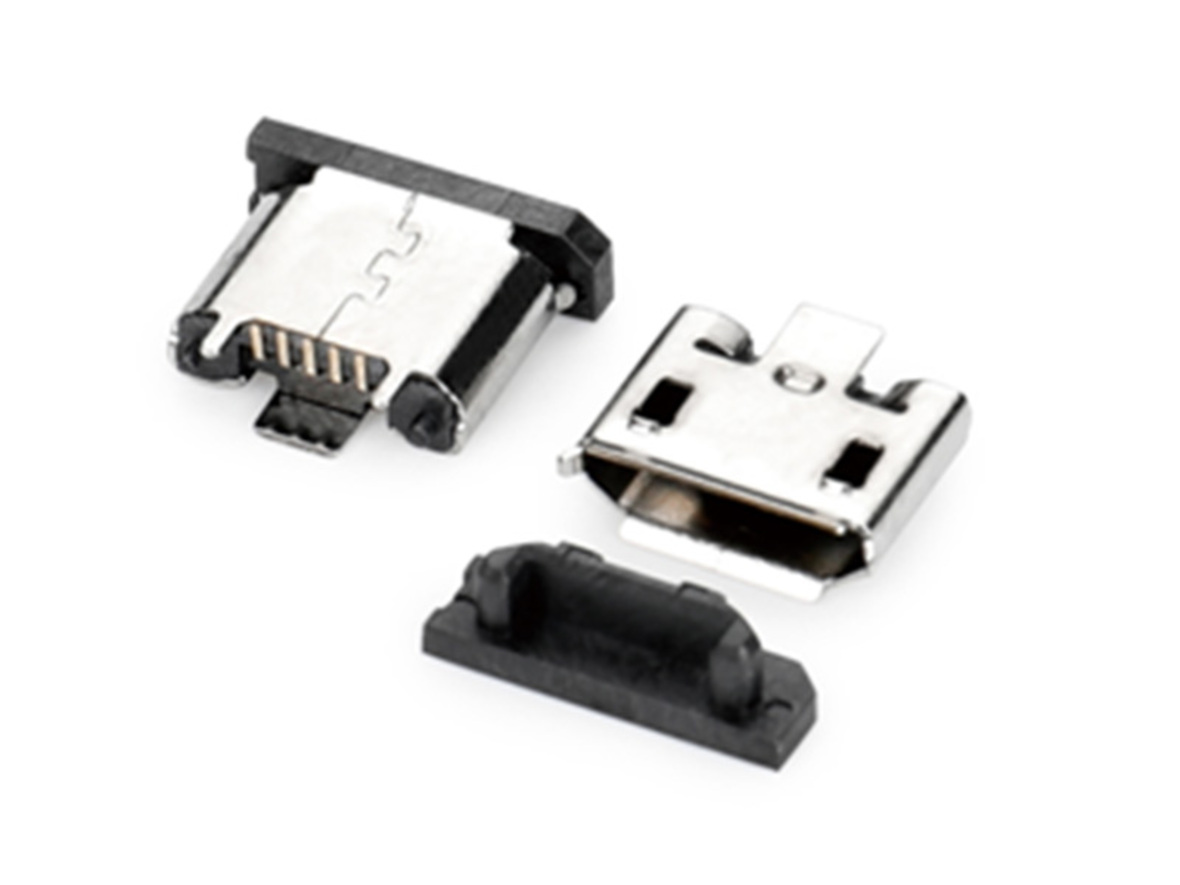

MICRO USB 5P 立式三支腳立貼有柱有邊SMT
電氣參數
Electrical
Rating: 30V AC
Current: PIN2&PIN3&PIN4& 1A, PIN5 1.8A
Withstanding Voltage: 100V AC
Contact Resistance: 30mΩ. MAX.
Insulation Resistance: 1000 MΩ. MIN.
Operating temperature: -20°C ~ +85°C;
Rating: 30V AC
Current: PIN2&PIN3&PIN4& 1A, PIN5 1.8A
Withstanding Voltage: 100V AC
Contact Resistance: 30mΩ. MAX.
Insulation Resistance: 1000 MΩ. MIN.
Operating temperature: -20°C ~ +85°C;
產品規格
Specification(Abbreviation)
Family: Micro B
Interface: Single
PCB Mounting: DIP
Operation Direction: Vertical
Family: Micro B
Interface: Single
PCB Mounting: DIP
Operation Direction: Vertical
