Shenzhen Hongyi Decheng Technology Co., Ltd

?

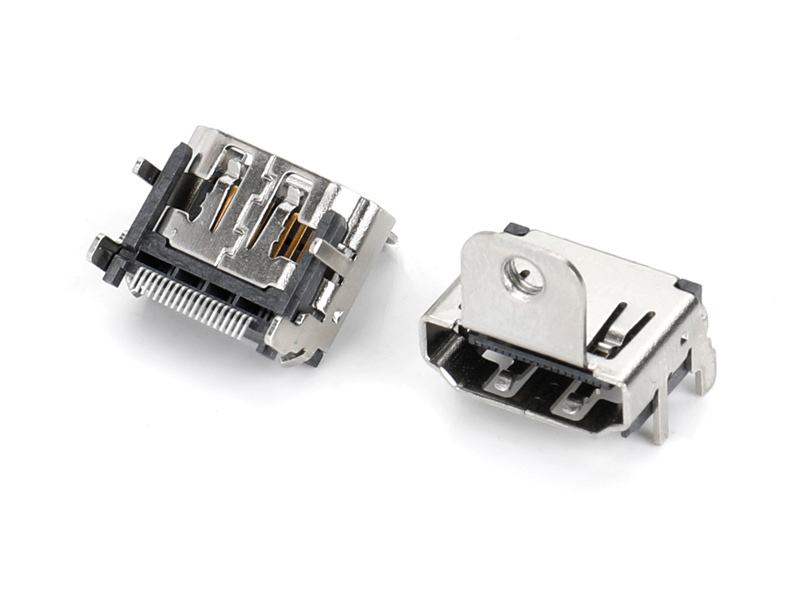

HDMI SMT Molding type four straight pins and four reverse shrapnel, foot length 2.0, side mold printing, screw hole height 11.3, glue without post Terminal half gold matte tin 1u

HDMI SMT Molding type four straight pins and four reverse shrapnel, foot length 2.0, side mold printing, screw hole height 11.3, glue without post Terminal half gold matte tin 1u

Electrical parameters

Electrical
Voltage: 40V AC (Per Pin)
Current: 0.5A (Per Pin)
Contact Resistance: 30 mΩ MAX.
30 mΩ MAX. after test
Dielectric Withstanding Voltage: 500V AC/rms (mated conn.)
Insulation Resistance: 100 MΩ min. (mated conn.)
Operating Temp.: -30℃ ~ +85℃

Specifications

Specification(Abbreviation)
Family: A type
Interface: Standard
PCB Mounting: SMT
Operation Direction: R/A

Data download

Product Consultation

For sales, technical support, and services, please call us or leave us a message
+86-755-89494830
