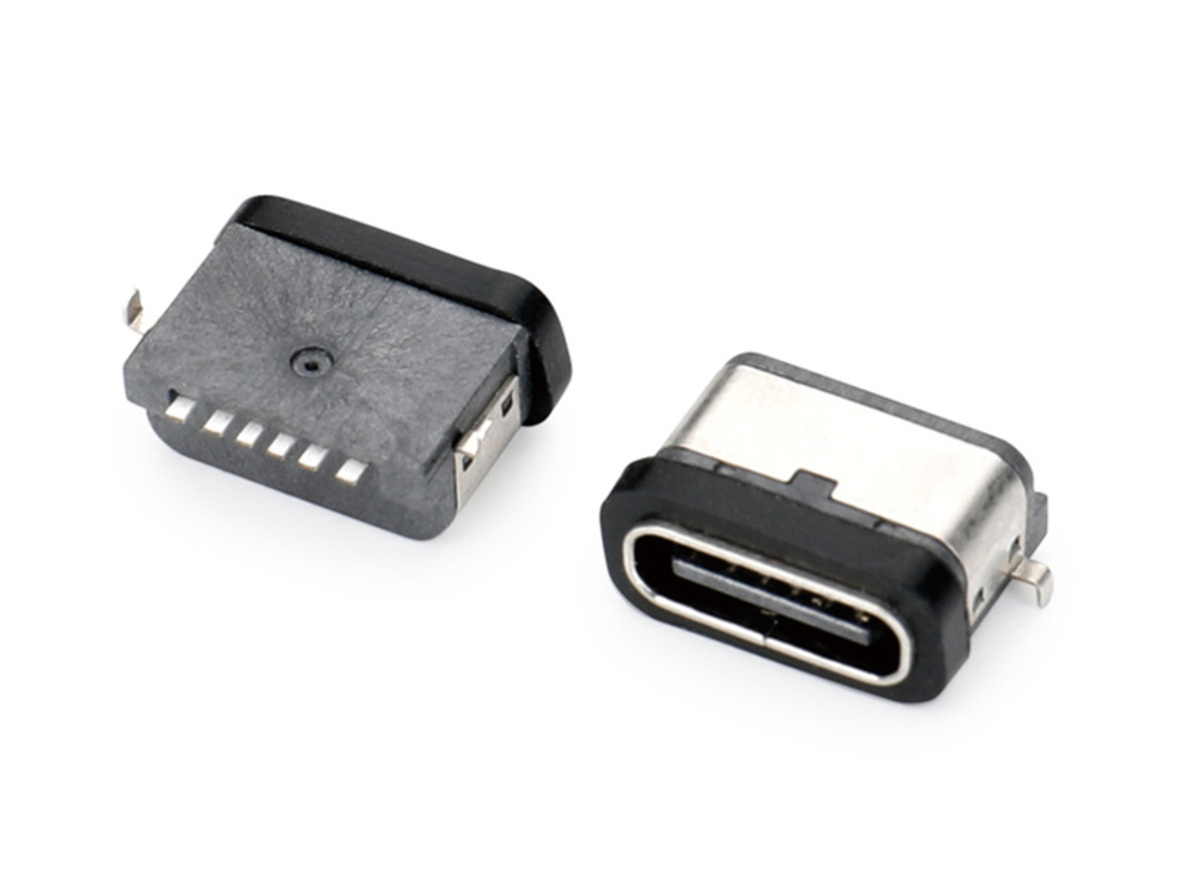

Waterproof IP66 on USB TYPE C6P board
Electrical parameters
Electrical
Voltage : 20V AC
Current : 5A (Max.)
Contact Resistance : 40mΩ max. (Initial)
Dielectric Withstanding Voltage : 100V AC/rms
Insulation Resistance : 100 MΩ min.
Operating Temp : -40℃ ~ +85℃
Voltage : 20V AC
Current : 5A (Max.)
Contact Resistance : 40mΩ max. (Initial)
Dielectric Withstanding Voltage : 100V AC/rms
Insulation Resistance : 100 MΩ min.
Operating Temp : -40℃ ~ +85℃
Specifications
Specification(Abbreviation)
Family: Waterproof
Interface: R/A
PCB Mounting: SMT
Circuits: 6P
Family: Waterproof
Interface: R/A
PCB Mounting: SMT
Circuits: 6P
