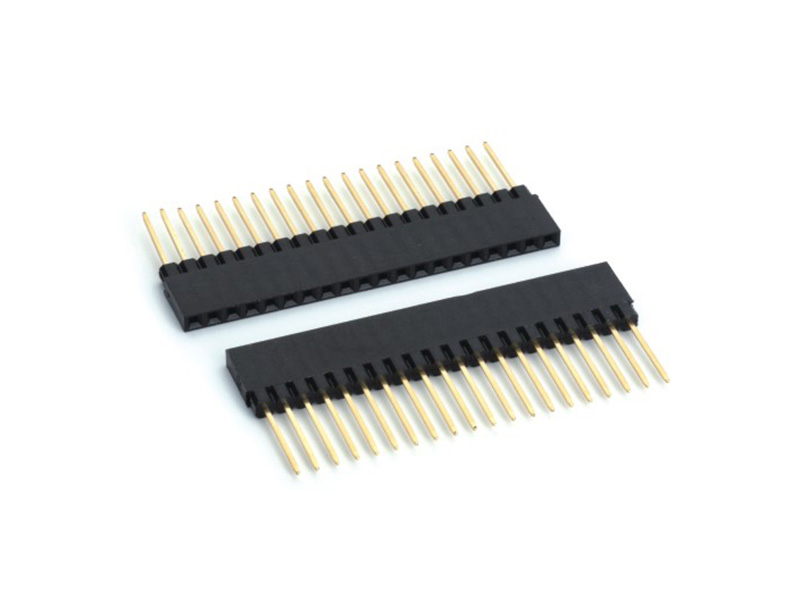

2.0MM single row female PC107+pin header
Electrical parameters
Electrical
Voltage: 30 Volts
AC Current: 2.0 Amperes Max.
Contact Resistance: 30 mΩ Max.
Dielectric Withstanding Voltage: 500 V AC/rms
Insulation Resistance: 1000 M Ω Min
Operating Temperature : -40℃ to +85℃
Voltage: 30 Volts
AC Current: 2.0 Amperes Max.
Contact Resistance: 30 mΩ Max.
Dielectric Withstanding Voltage: 500 V AC/rms
Insulation Resistance: 1000 M Ω Min
Operating Temperature : -40℃ to +85℃
Specifications
Specification(Abbreviation)
Family: Female
PCB Mounting: T/H，SMT
Operation Direction: S/T
Family: Female
PCB Mounting: T/H，SMT
Operation Direction: S/T
